Connections
Connect OpenAI, Anthropic, OpenRouter, Amazon Bedrock and approved self-hosted model servers, with credentials that stay on the server.

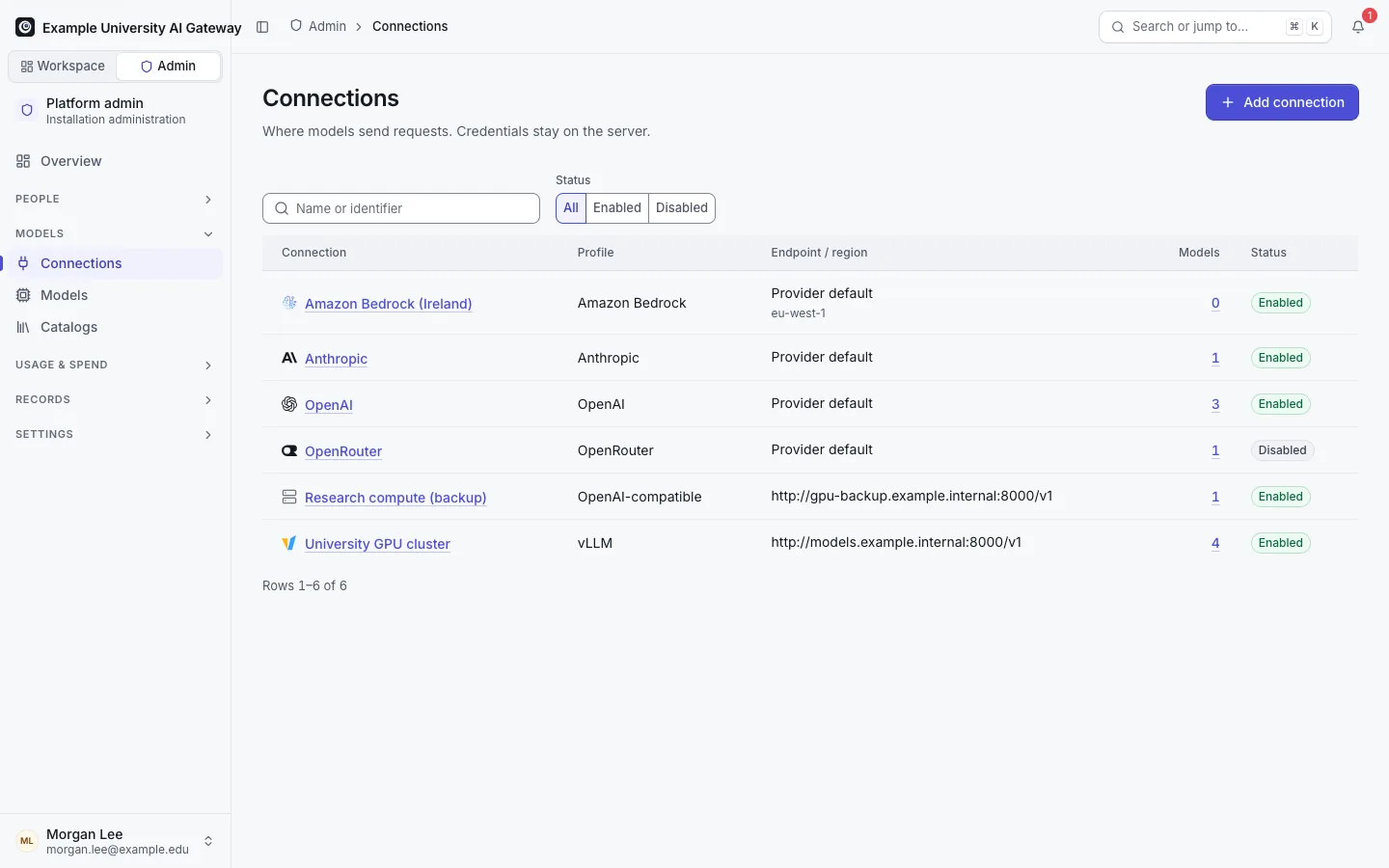

A connection is an upstream provider and how to reach it. Admin › Connections lists them with their provider, endpoint or region, status and how many models use them. Add connection makes a new one.
Credentials stay on the server
You never paste an API key into the dashboard. A connection stores a reference to a secret that the operator puts in the server's environment:
- Secret in an environment variable: you enter the variable's name, such as
OPENAI_API_KEY. The operator must also list that name inGATEWAY_SECRET_ENV_ALLOWLIST, or the gateway refuses to use it. - No authentication: only for approved self-hosted servers. Cloud connections always need a credential.
- AWS identities for Amazon Bedrock (below).
The reference is never shown again after saving, and API keys sent by callers are never passed to a provider. See Provider credentials.
Providers
| Provider profile | Address | Serves |
|---|---|---|
| OpenAI | Fixed: https://api.openai.com/v1 | Chat Completions, Responses, embeddings, image generation (gpt-image-*), speech to text, text to speech, realtime, native batches |
| Anthropic | Fixed: https://api.anthropic.com/v1 | Messages, a Chat Completions subset, native batches |
| OpenRouter | Fixed: https://openrouter.ai/api/v1 | Chat Completions, embeddings, image generation, speech to text, text to speech, rerank, System One |
| Amazon Bedrock | AWS region, optional VPC endpoint | Chat Completions and Messages (text and tools, via Converse) |
| OpenAI-compatible, vLLM, SGLang, Ollama | An approved local endpoint | Chat Completions and embeddings |
Each profile supports a tested subset of requests, not every option of the provider. See the API reference for what each endpoint accepts.
OpenAI, Anthropic and OpenRouter
Choose the profile, give the connection a name, and enter the name of the environment variable that holds its key. The address can't be changed.
OpenRouter sends your installation's data-collection choice on every request (deny by default; see Settings › Data & privacy). OpenRouter's :free model variants may train on prompts, so with deny they have no eligible provider and fail; a model page warns about this. OpenRouter routes can also import their current price from OpenRouter's public catalog.

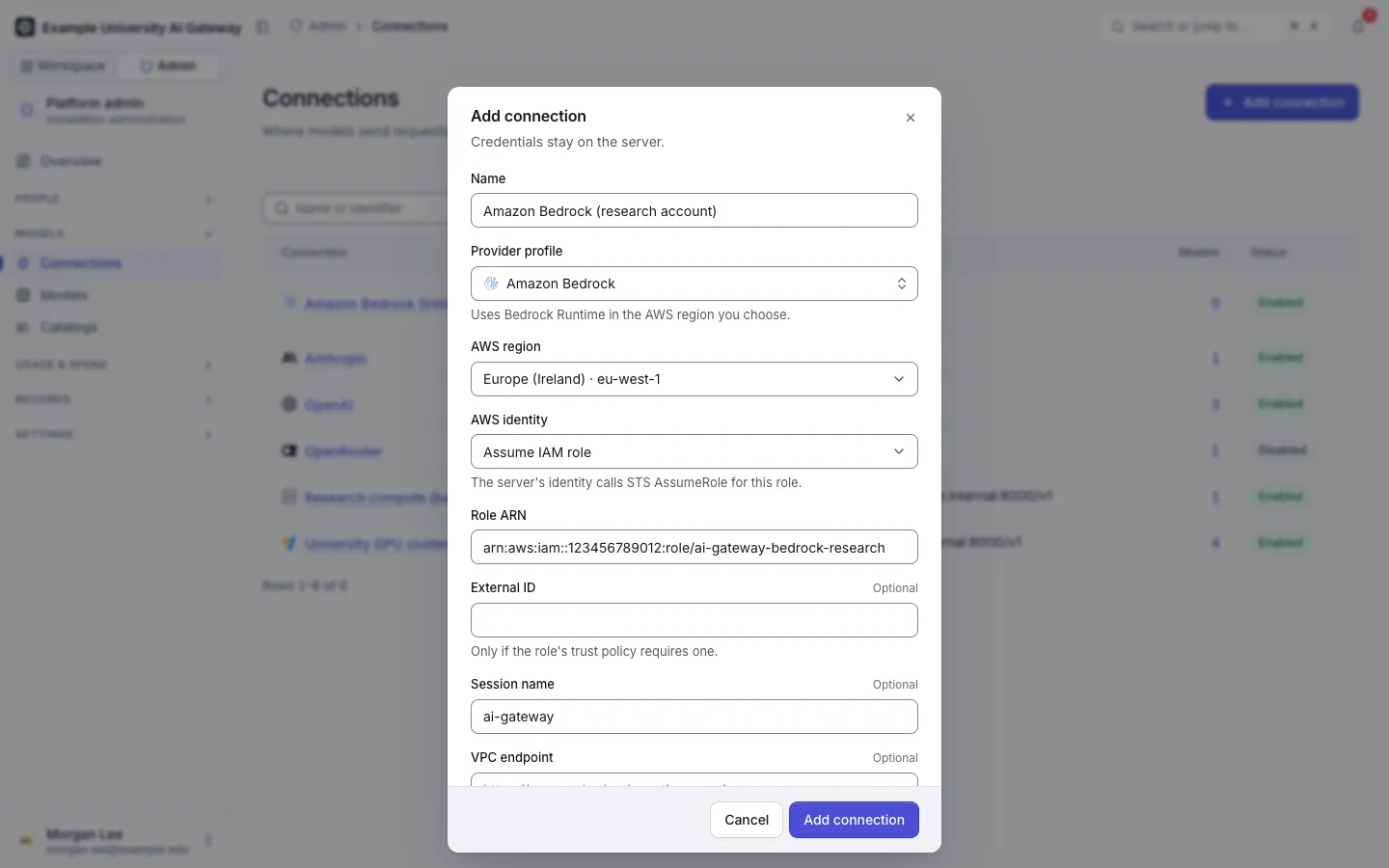

Amazon Bedrock
| Field | Value |
|---|---|
| Region | An AWS region code, such as us-east-1. The form lists common Bedrock regions and accepts any valid code. |
| AWS access | Server identity: the server's own AWS credentials, such as an ECS task role, EC2 instance profile or EKS role (preferred). Named profile: a profile from the server's AWS config, which the operator must allow in GATEWAY_AWS_PROFILE_ALLOWLIST. Assume role: an IAM role ARN the server identity assumes, with an optional external ID and session name. |
| Endpoint | Blank for the regional Bedrock endpoint, or an interface VPC endpoint (PrivateLink) that the operator allowed in GATEWAY_BEDROCK_ENDPOINT_ALLOWLIST. |
A route's upstream model on Bedrock is a model id (anthropic.claude-…), an inference profile id (us.…, eu.…, apac.…, global.…) or a Bedrock ARN in the connection's region. The identity needs bedrock:InvokeModel and, for streaming, bedrock:InvokeModelWithResponseStream. Model access and quotas are configured in AWS. To change an assumed role's options, choose Change AWS access and restate the role.
Self-hosted servers
Self-hosted servers (OpenAI-compatible, vLLM, SGLang, Ollama) can use plain HTTP on a private network, but only at addresses the operator has approved in GATEWAY_LOCAL_UPSTREAMS, each pinned to its IP addresses. Enter the approved base URL, ending in /v1, such as http://models.example.internal:8000/v1. The form can't approve a new address.
- Choose No authentication, or a secret in an environment variable that is sent as a bearer token to that server only.
- Ollama's embeddings use its native
/api/embedon the same address, with truncation off. - Strict tool schemas aren't supported on local profiles; Ollama doesn't accept an explicit tool choice.
Gateway-run batch lines on these routes can wait for spare capacity, watch the server's vLLM metrics and send a vLLM priority hint: see Batch scheduling.
Network safety
For every connection the gateway follows no redirects, ignores proxy environment variables and never retries a request on its own. Cloud connections use HTTPS. Restrict outbound network access on the server as well; the application's approval list is not a firewall.
Disable or retire
When you add a connection, Enable now decides whether its routes can serve requests straight away. A connection's status can be changed later on its page. Retire resource… disables it: its records, prices and history are kept, never deleted, but no new request runs on it. Disabling a connection stops its routes at once, and also stops client calls and polling for its provider batch jobs.
